Product Parameters
| System Physical Standard Configuration: | ||
| Type | Details | Descriptions |

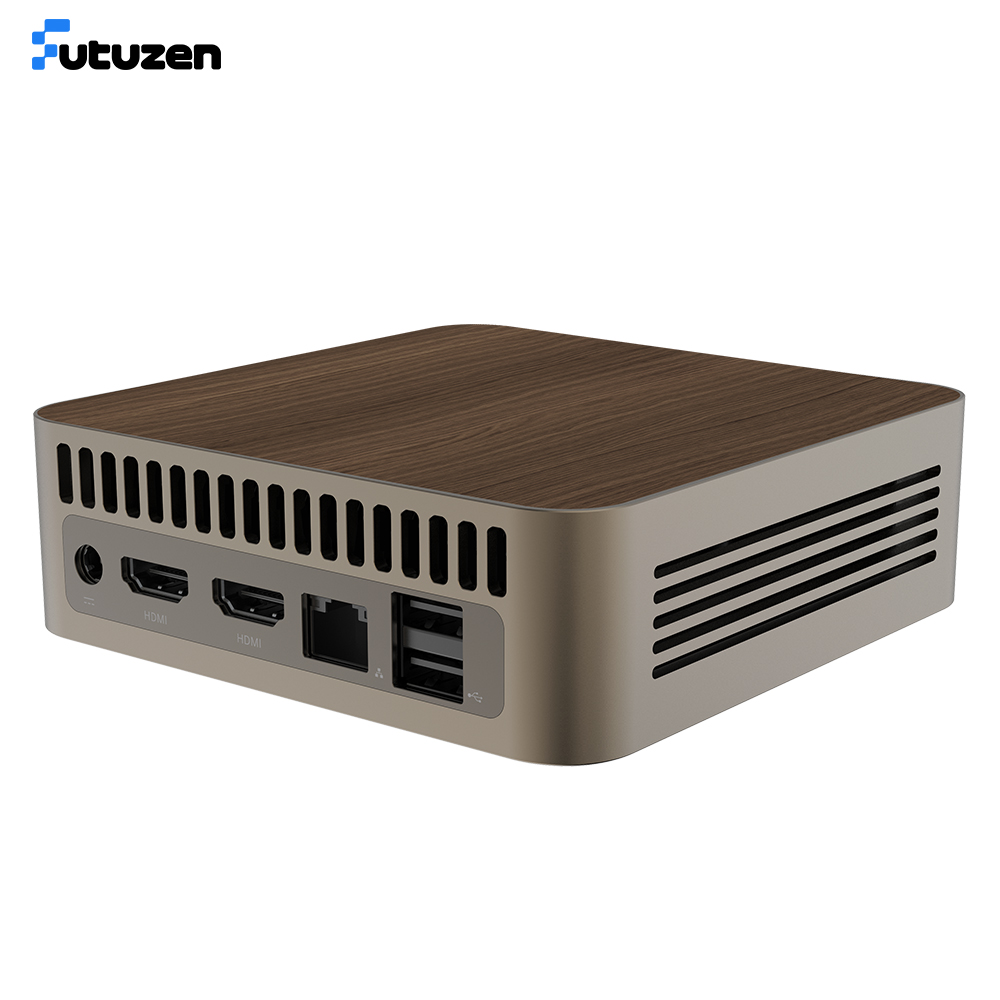

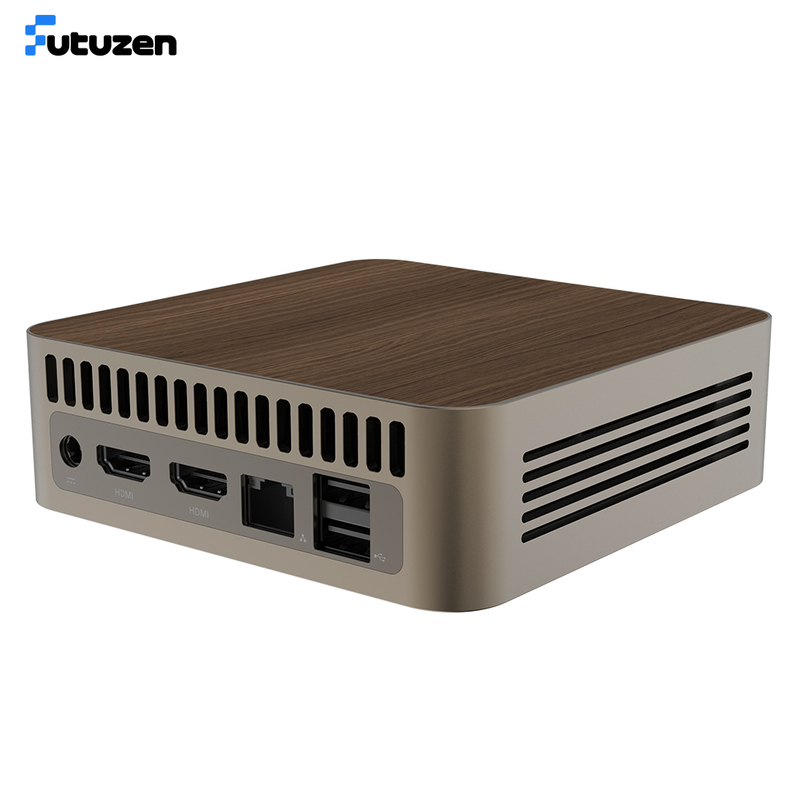

| Product Form | Product Form | Mini PC Box |
| Color | Golden | |
| Dimensions | 118*118*42.2mm | |
| Weight | ≈465g | |
| Housing | Plastic+Metal | |
| System hardware configuration: | ||
| Type | Details | Descriptions |
| CPU | Type | Intel Alder Lake-U Series, i3-1215U/i5-1235U/i7-1255U,15W Intel Alder Lake-P Series, i3-1220P/i5-1240P/i7-1260P, 28W |
| Model | i3-1215U, 6-Cores, 8threads; Speed: 3.3GHz~4.4GHz i5-1235U, 10-Cores, 12threads; Speed: 3.3GHz~4.4GHz i7-1255U, 10-Cores, 12threads; Speed: 3.5GHz~4.7GHz i3-1220P, 10-Cores, 12threads; Speed: 3.3GHz~4.4GHz i5-1240P, 12-Cores, 16threads; Speed: 3.3GHz~4.4GHz i7-1260P, 12-Cores, 16threads; Speed: 3.4GHz~4.7GHz | |
| GPU | Type | Intel® UHD Graphics |
| RAM | SO-DIMM*2 | DDR4 up to 64G 3200 MT/s, SO-DIMM x2 |
| ROM | eMMC | NA |
| SSD | M.2 | 1x SSD- M.2-2280 - up to 1TB (supports PCIe 3.0 x4 & SATA3.0 modes) |
| HDD | SATA | NA |
| Security | Yes | DTPM/fTPM (Optional) |
| Network Connections: | ||
| Type | Details | Descriptions |
| WIFI | WIFI module | M.2 2230 Intel® Wireless-AC 3165 1x1 PCIe/USB + Bluetooth 4.2 M.2 2230 Intel® Wireless-AC 9461 1x1 CNVio + Bluetooth 5.1 M.2 2230 Intel® Wireless- AC9560 2x2 CNVio + Bluetooth 5.1 M.2 2230 Intel® Wireless- AX201 2x2 CNVio + Bluetooth 5.2 |
| Ethernet Network | Type | 10/100/1000Mbps |

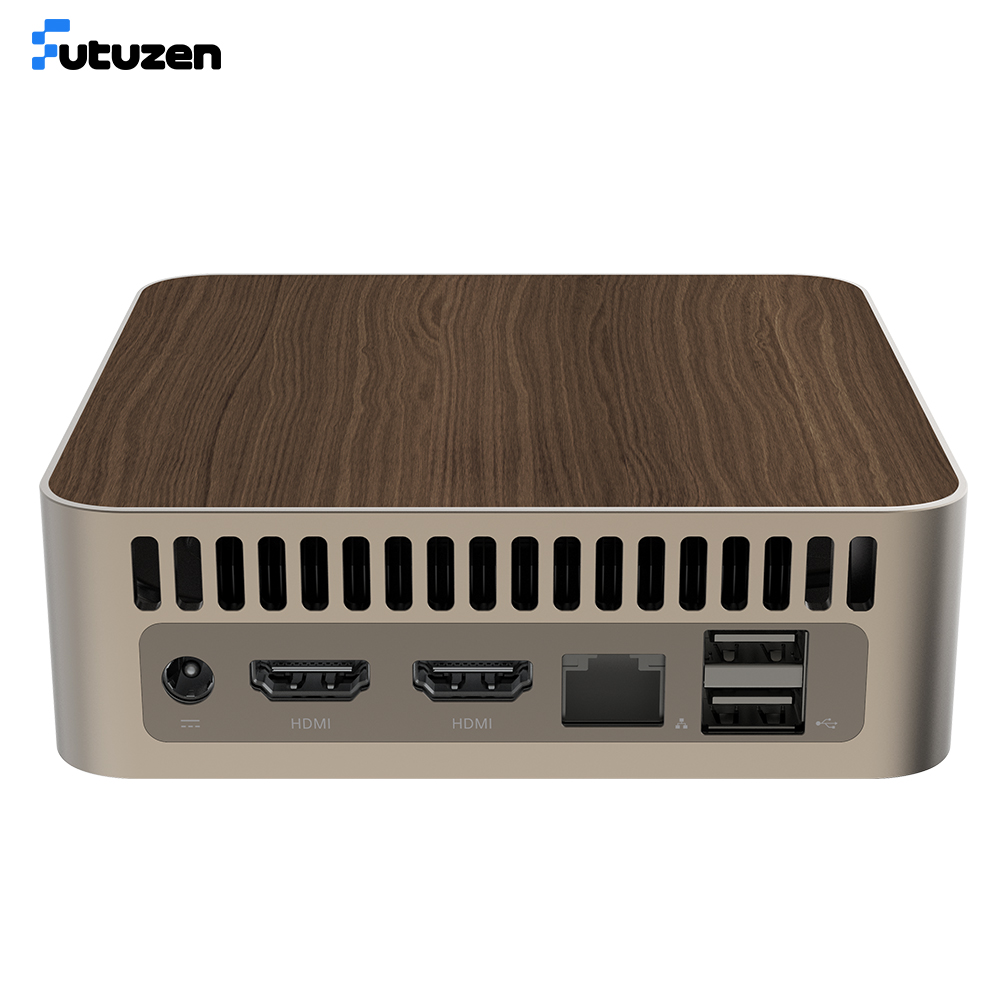

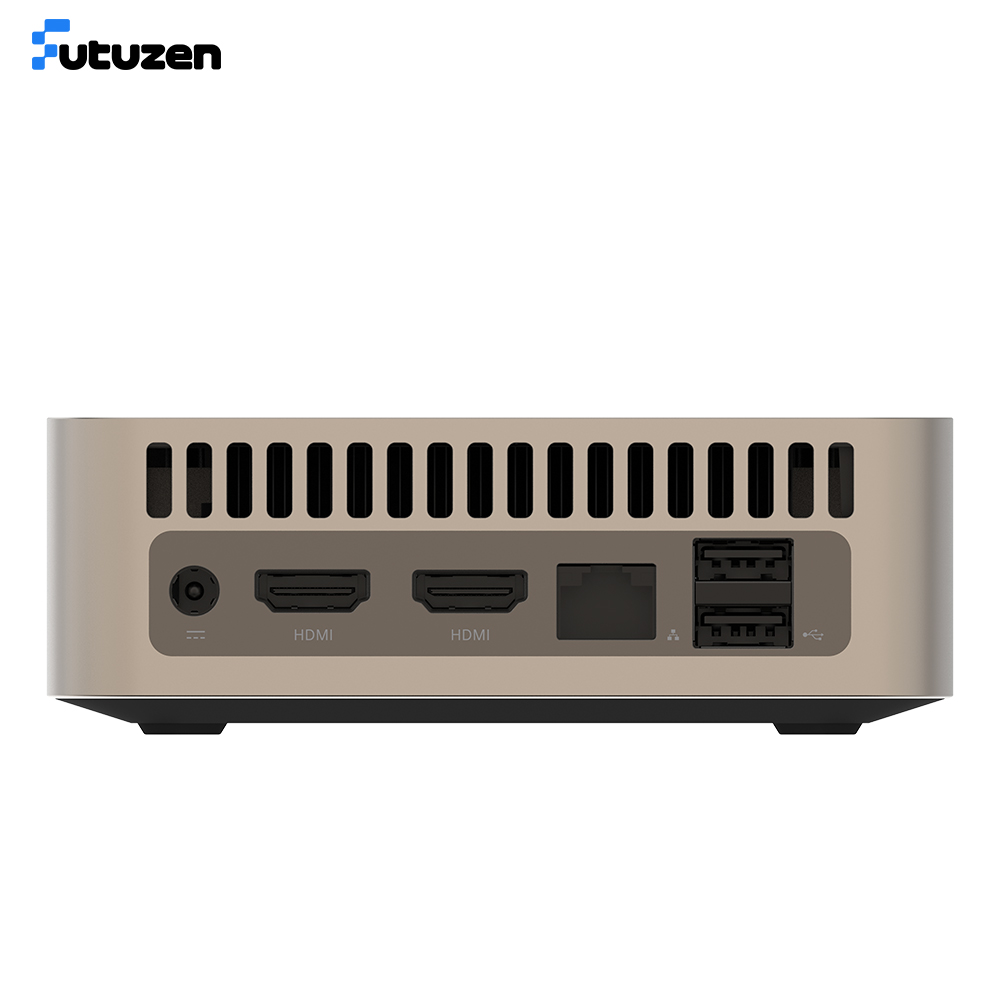

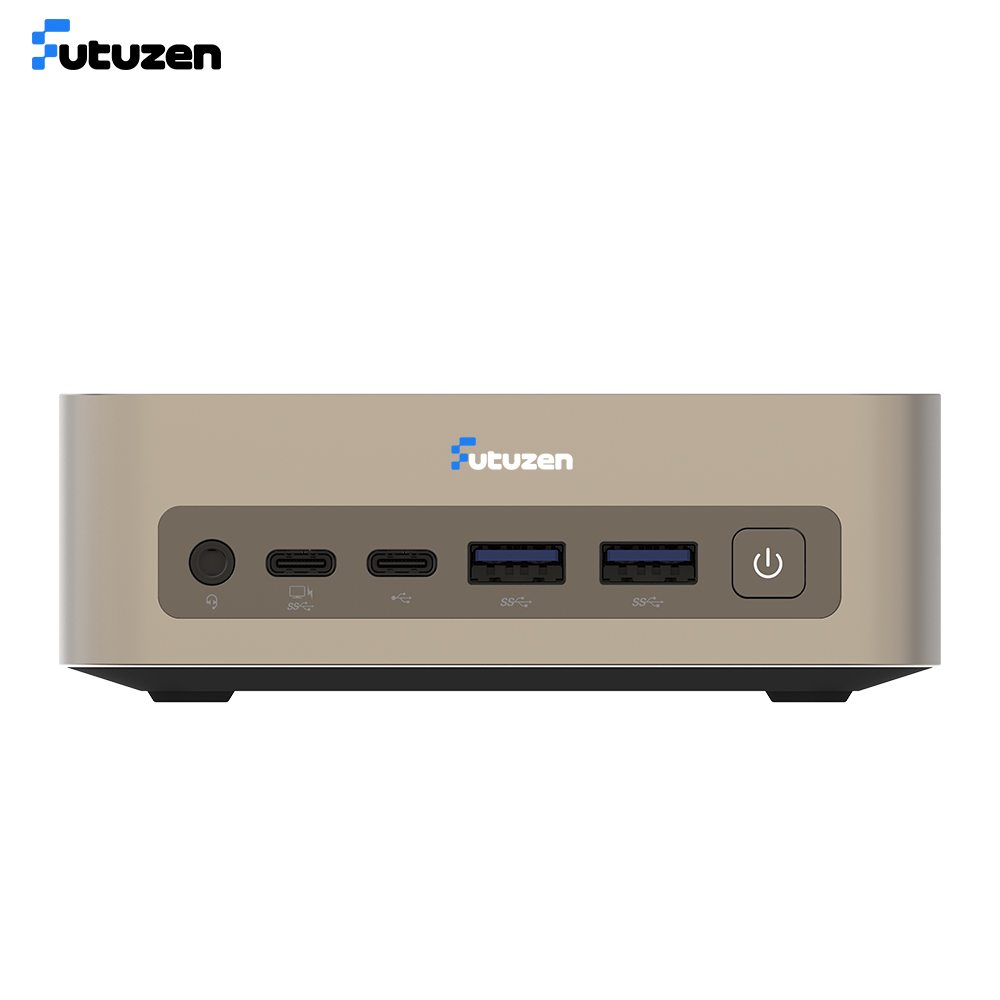

| Interface Configuration: | ||
| Type | Details | Descriptions |
| USB interface | Data transfer supportive | 2x USB2.0 Type A, 2x USB 3.2 Gen1 |
| Audio jack | Audio input | 1xHeadphone/microphone combo |
| DC connector | Power | 1x DC Φ5.5mm power connector |
| HDMI interface | Video output | 1x HDMI 1.4 Type A 1x HDMI 2.0 Type A |
| Expand storage | Micro SD | NA |
| Network interface | Ethernet | 1x RJ45 |
| VGA interface | Video output | NA |
| Type-C interface | USB | 1x Full Type-C(USB3.2 Gen1+DP+PD) 1x Type-C USB 2.0 |
| Power | Power button | LED lits white when power on, and stay solid white |
| Keyboard | Input device | USB,BT Expuntable Wired / Wireless Supportive |
| Mouse | Input device | USB,BT Expuntable Wired / Wireless Supportive |
| Necessary Accessories: | ||
| Type | Details | Descriptions |
| Power adapter | Standard Configuration | DC φ 5.5mm 19V/3.42A 65W DC φ 5.5mm 19V/4.74A 90W(According to the CPU model to choice) |
| Software Configuration: | ||
| Type | Details | Descriptions |
| Operating System | Operating system version | Windows 11 |
| Features | ||
| Type | Descriptions | |
| Accessories | VESA | support(100*100) |
